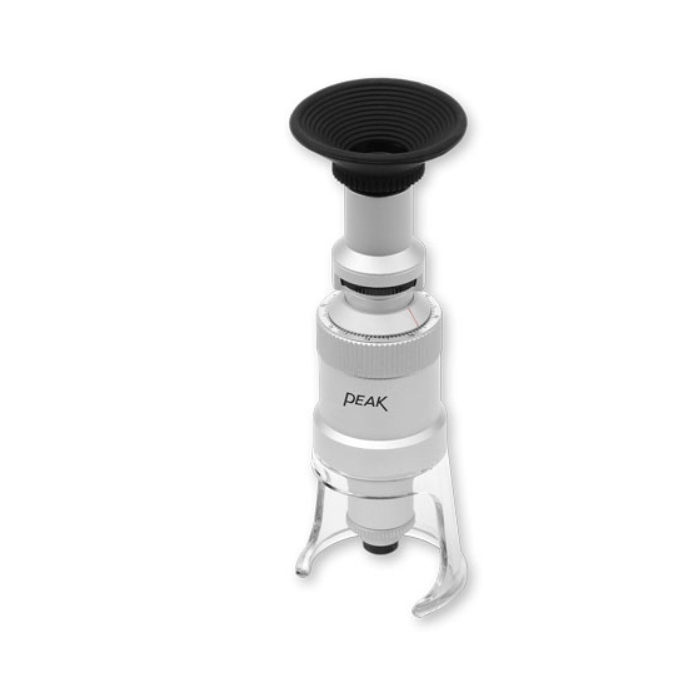

PEAK 2034-20X
Product Introduction

Peak Wide Stand Microscope is a simple measuring microscope designed to be compact and light weight but characterized by a wider field of view than that of the conventional microscope. It allows not only to provide magnified view of fine p

Details

Peak Wide Stand Microscope is a simple measuring microscope designed to be compact and light weight, but characterized by a wider field of view than that of the conventional microscope.

It allows not only to provide magnified view of fine pattern and contour of objects, but also to measure length and compare dimension by using a scale included in the eye-piece. Has a helicoid focus mechanism

Magnification: 20X

Field of View: 7.2 mm o

Min. Scale Div.: No. 54 = 0.1 mm, No. 57 = 0.0005"

Measuring Range: 6.0mm 0.236"

Working Distance: 36.0mm

Numerical Aperture: 0.06

Focal Distance: 35.0mm

Size (mm): 63ox172mm

Net Weight: 237-241gm
