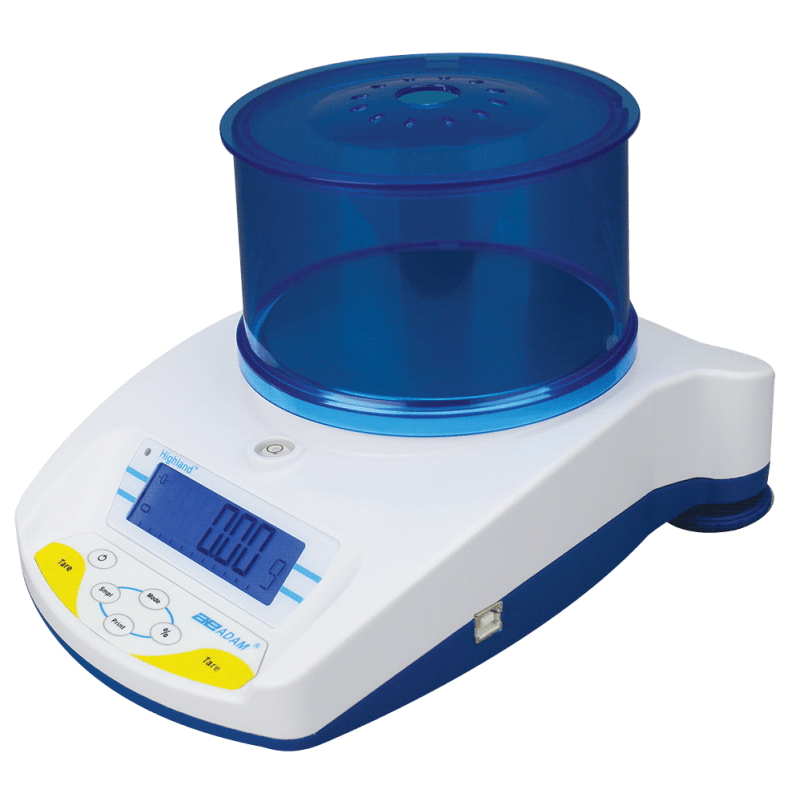

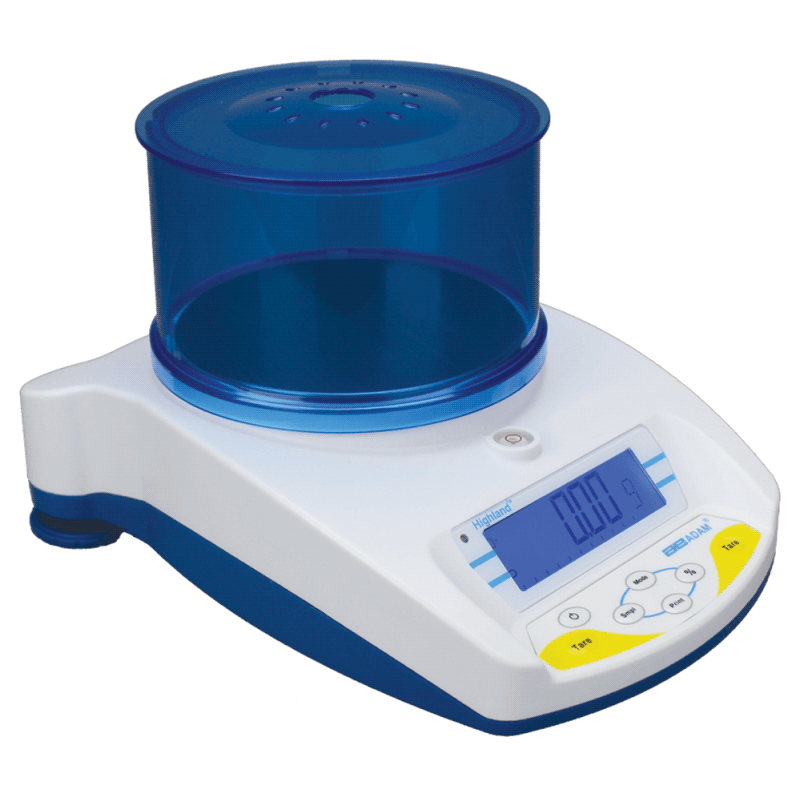

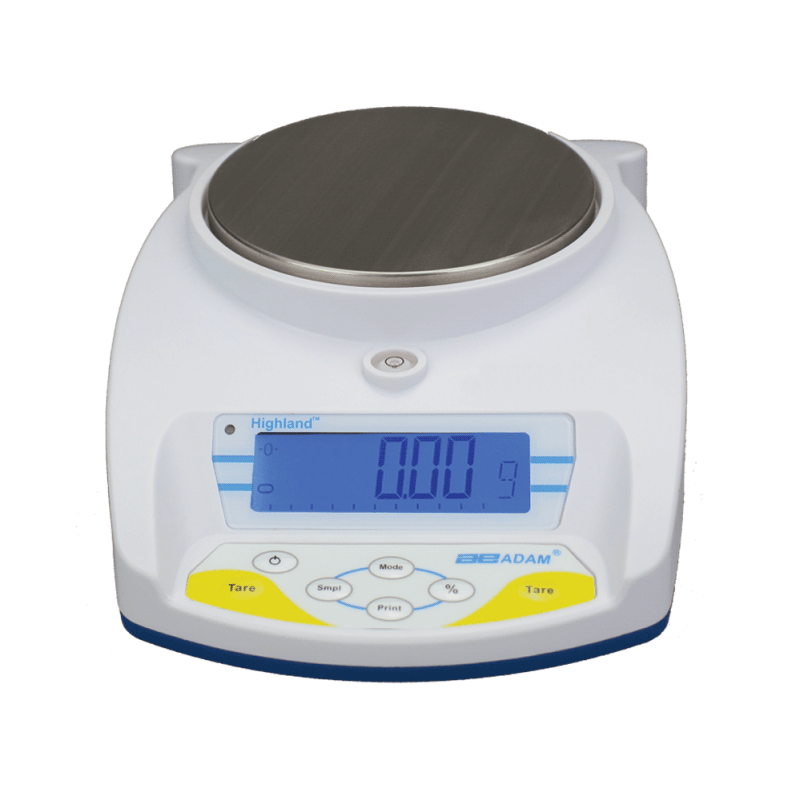

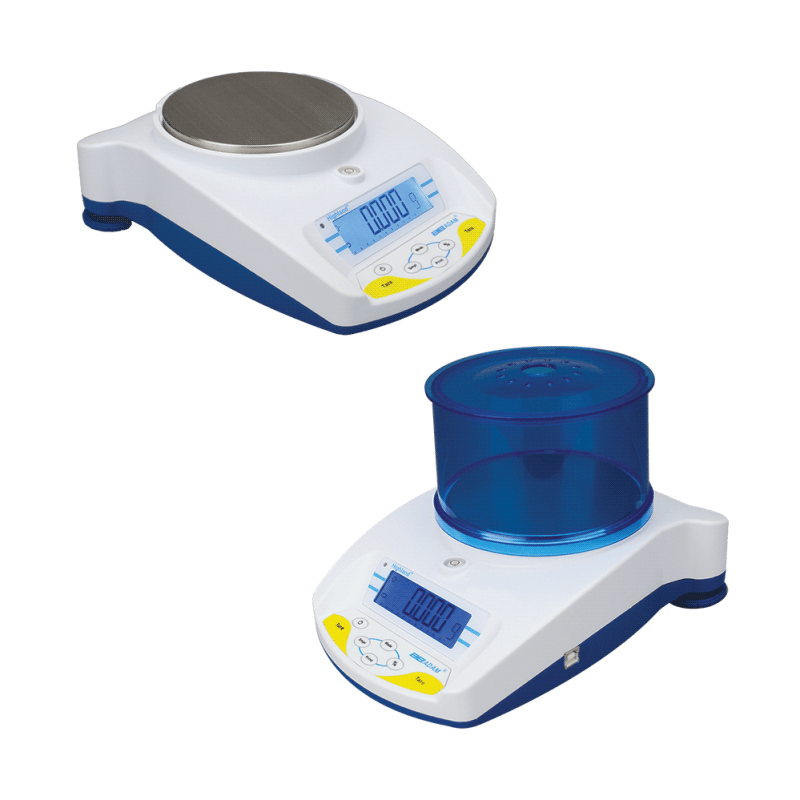

The  portable precision balance offers advanced features in a compact, durable balance that stacks for easy storage.

Featuring multiple weighing applications including parts counting, percent weighing and accumulation, the  provides fast, accurate weighing in a number of different environments – from science research in the laboratory or field, to manufacturing operations. Sturdy ABS construction allows the Highland to stand up to demanding lab use, while Highland’s  offers advanced overload protection to keep the balance safe. HandiCal® facilitates internal calibration without the need for external weights.

HCB 123 Specifications

Features and Benefits

Hardware

• Balances stack efficiently and safely to save space (120mm pan size only)
• Color-coded keys facilitate quick recognition of the most frequently used buttons
• Dual tare keys operate with either the left or right hand
• Level indicator and adjustable feet ensure proper balance setup for optimum weighing results
• Security slot for optional Kensington-type lock and cable to help prevent theft
• Large, grade 304 stainless steel pan allows swift cleaning
• Solid ABS housing is durable for industrial use
• Three-point ShockProtect feature helps prevent overload damage to internal components
• Hook included for weighing below the balance
• HandiCal® internal calibration eliminates need for external weight set
• USB and RS-232 interfaces provide speedy communication with computers and printers

Software

• Audible overload alarm warns when capacity is exceeded
• External calibration allows for verification and adjustment with weights
• Selectable digital filtering helps minimize effects of vibration and disturbances
• Parts counting with preset sample sizes
• Memory accumulation totals results
• Zero-tracking feature ensures display returns to zero reading

Display

• Vivid, backlit LCD easily visible in any lighting conditions
• Programmable backlight can be set to "always on," "always off" or "light only when weighing"
• Capacity tracker built into display for easily monitoring possible overloads

Power

• AC adapter included
• Rechargeable battery included for operation almost anywhere
• Programmable auto power-off to save energy

Model	Capacity	Readability	Pan Size
HCB 123	120g	0.001g	4.7" ø / 120mm ø
HCB 153	150g	0.005g	4.7" ø / 120mm ø
HCB 302	300g	0.01g	4.7" ø / 120mm ø
HCB 602	600g	0.02g	4.7" ø / 120mm ø
HCB 602H	600g	0.01g	4.7" ø / 120mm ø
HCB 1002	1000g	0.01g	4.7" ø / 120mm ø
HCB 1502	1500g	0.05g	4.7" ø / 120mm ø
HCB 3001	3000g	0.1g	4.7" ø / 120mm ø
HCB 2202	2200g	0.01g	4.7" ø / 120mm ø
HCB 6001	6000g	0.1g	5.7" ø / 145mm ø
HCB 602	600g	0.02g	4.7" ø / 120mm ø
