Best suited for measuring precision parts and testing materials like rubber leather fabric and plastic etc. Rubber leather urethane and film can be easily measured by this system. The table of R1 series are adjustable up and down by the
Best suited for measuring precision parts and testing materials like rubber, leather, fabric and plastic etc.
Rubber, leather, urethane and film can be easily measured by this system.
The table of R1 series are adjustable up and down by the nut installed side way.
The dial gauge is affixed to the body.
| Specifications | ||||||||||
| Model | Dial Indicator (standard attachments) |
Indication error ( µm ) |
Table diameter ( mm ) |
Contact point dia. ( mm ) |
Measuring force less than (N) |
Measuring depth ( mm ) |
Effective measuring range (mm) |
Total height ( mm ) |
||
|
Gauge installed |
Range ( mm ) |
Graduation ( mm ) |

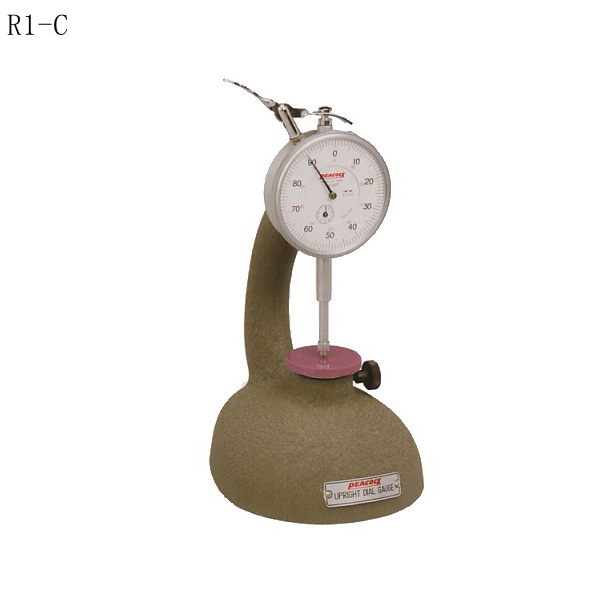

||||||||
| R1-A | 25F-RE | 2 | 0.001 | ±7 | 40 | 5 | 1.5 | 55 | 10 | 191 |
| R1-B | 107F-RE | 10 | 0.01 | ±15 | 40 | 5 | 1.4 | 55 | 25 | 190 |
| R1-C | 207F-PL | 20 | 0.01 | ±22 | 40 | 5 | 2.0 | 55 | 20 | 210 |

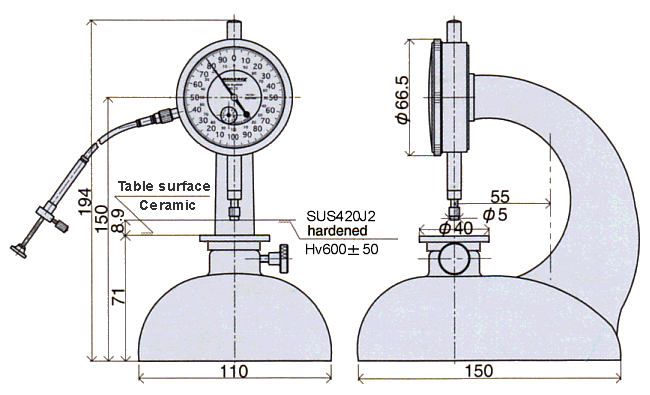

Dimensions: R1-A
 |
|

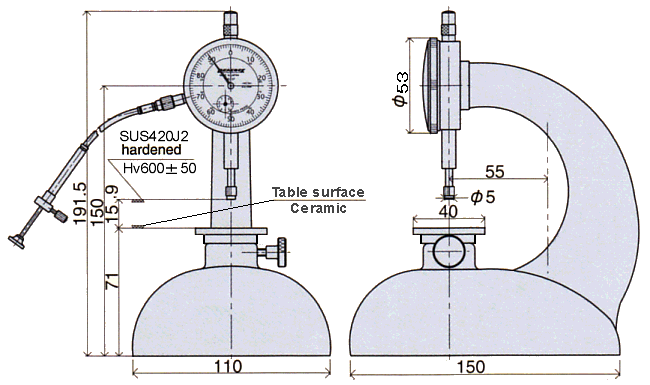

Dimensions: R1-B  |
|

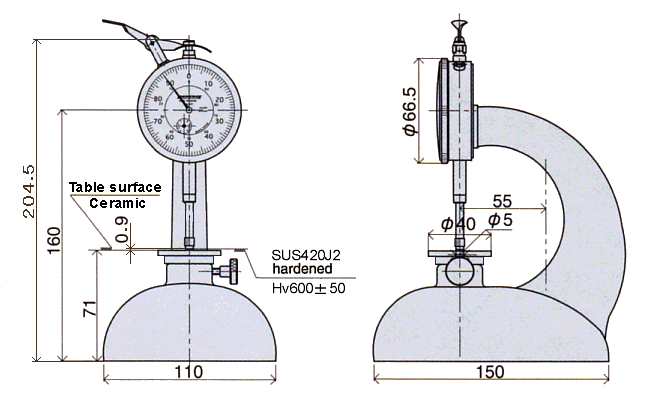

Dimensions: R1-C  |
