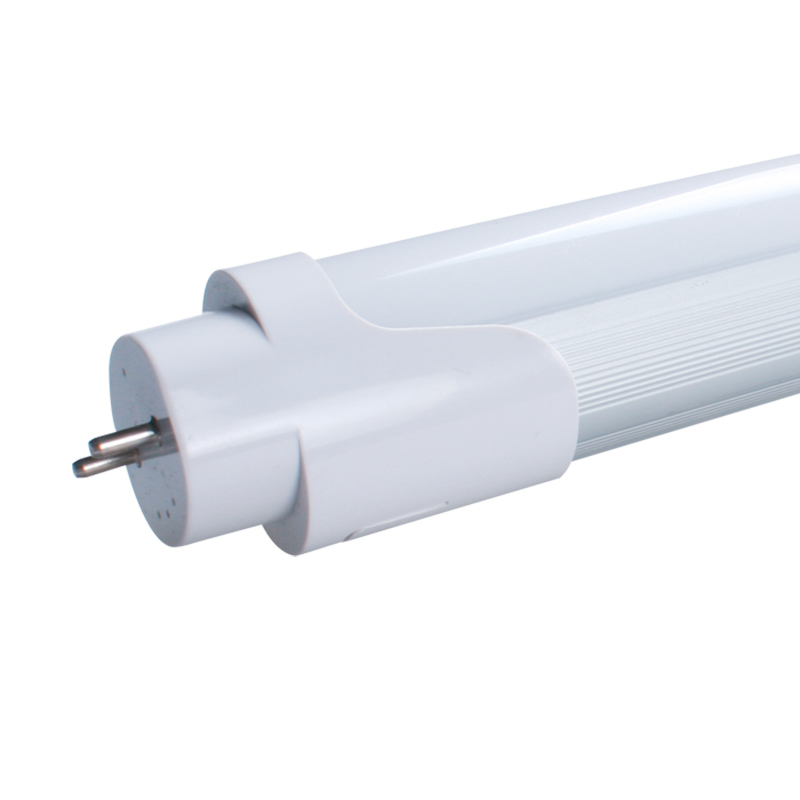

Standard Illuminant TRUD65™ 10W/20W

Product Introduction

The standard illuminant TruD65TM of 3nh is an innovative and breakthrough CCT 6500K Daylight simulator with super Ra 95 which employs advanced LED technology by optimizing spectra of combinations of phosphor blend and semiconductor excitati

Details



The standard illuminant TruD65TM of 3nh is an innovative and breakthrough CCT 6500K Daylight simulator with super Ra 95, which employs advanced LED technology by optimizing spectra of combinations of phosphor blend and semiconductor excitation chip to enable perfect color matching with Daylight.

We believe TruD65TM will initiate the next generation standard light source following Xeon Arc and Fluorescent by delivering unprecedented uniqueness and advantages for color management with state-of-the-art technology, excellent cost/effectiveness and reliable performance.



Features:


1. Super Color Rendering Index Ra 95;
2. CCT6500±200K,Duv ±0.0035;
3. Excellent color/flux stability over 3 years life;
4. No flicker. Dimmable(customized version);
5. 60%+ higher efficiency than fluorescent light tube, Hg Free;
6. PC tube, not easily damaged during transportation.


Specification:
1. Power supply: AC90-240V, 50/60HZ,compatible with FLR lamp base;
2. Environment required: Temperature10-40℃,
3. Size and power consumption:T8 600mm(10W), 1200mm(20W).

Warning:
1. Do not connect with power grid other than AC90-240V;
2. Waiting for 10 minutes to get stable color after turning on the light.

Product comparison:

Light Source  Fluorescent Tube 3nh LED
Company G-company V-company TruD65
δCCT(K)* ~350 ~350 <50
Ra 93 95 95
Efficacy(lm/W) ~35 ~35 >60
T8 Power(W)** 18-20W 18-20W 10W
life(hrs) 2000 2000 >10000
Driver with Ballast with Ballast AC 90-240V

*Generally, the CCT of FLR tube will decrease since power on and be stable after 30min; while LED increase a bit and stable in 10min.
**For 600mm length and should be double for 1200mm.
