How to install P60+/T60+ color light box

  • 2019-03-07 14:55
  • admin
  • Views

Let's start to install our P60+ / T60+ color light box by ourselves.

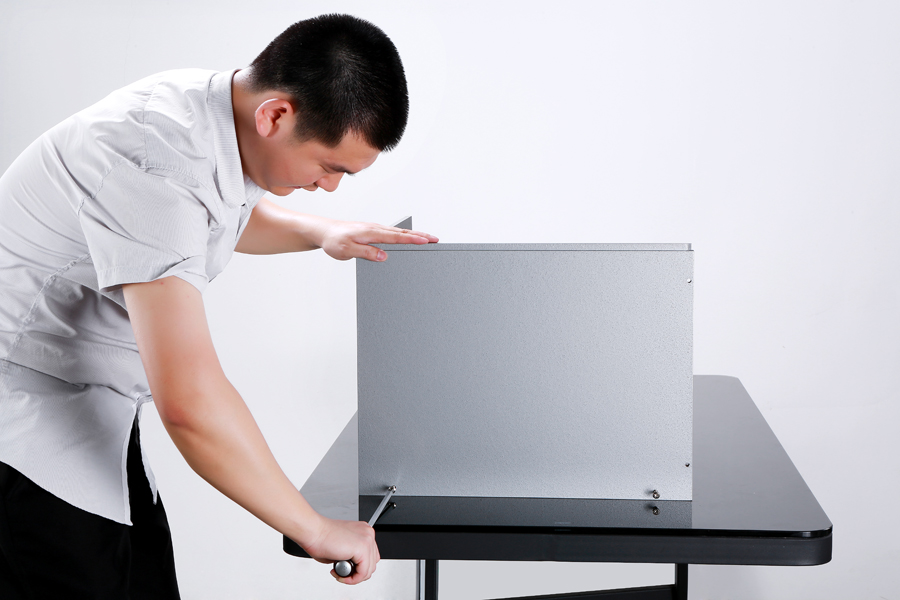

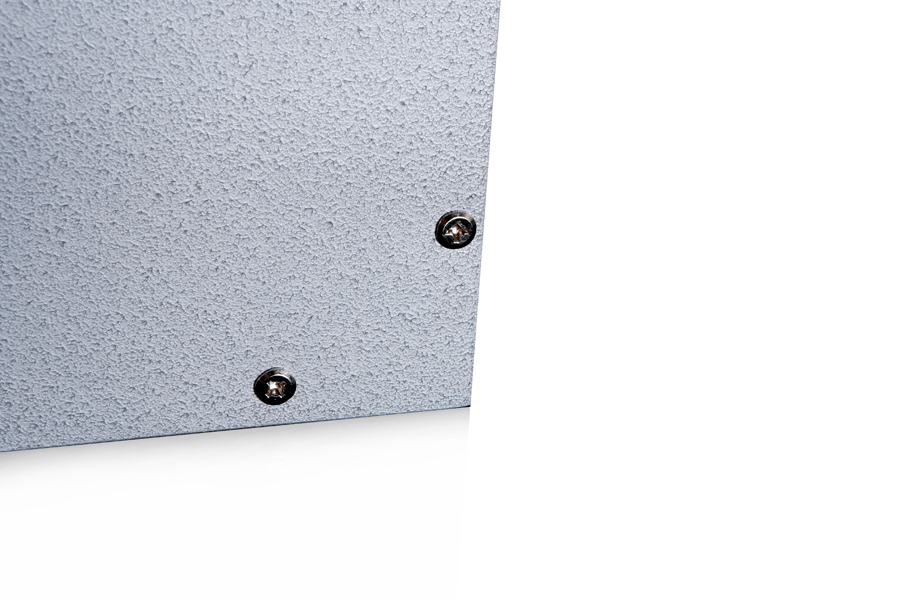

First, find the baseboard and side board, and use the screwdriver to tighten the screws shown as Figure 1.

Color light box installation 1

Figure 1

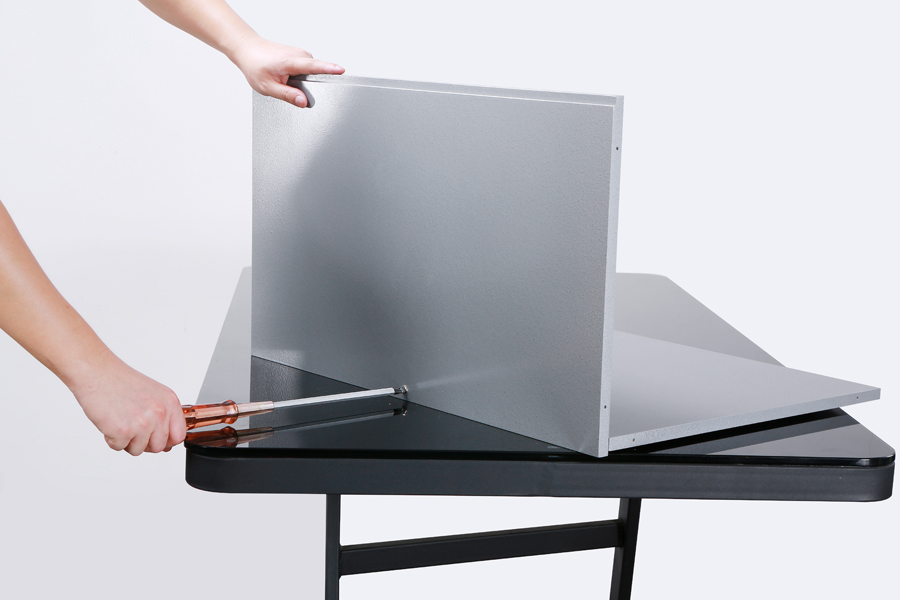

Second, find the left-side board, and install it shown as Figure 2.

Color light box installation 2

Figure 2

Color light box installation 3

Figure 3

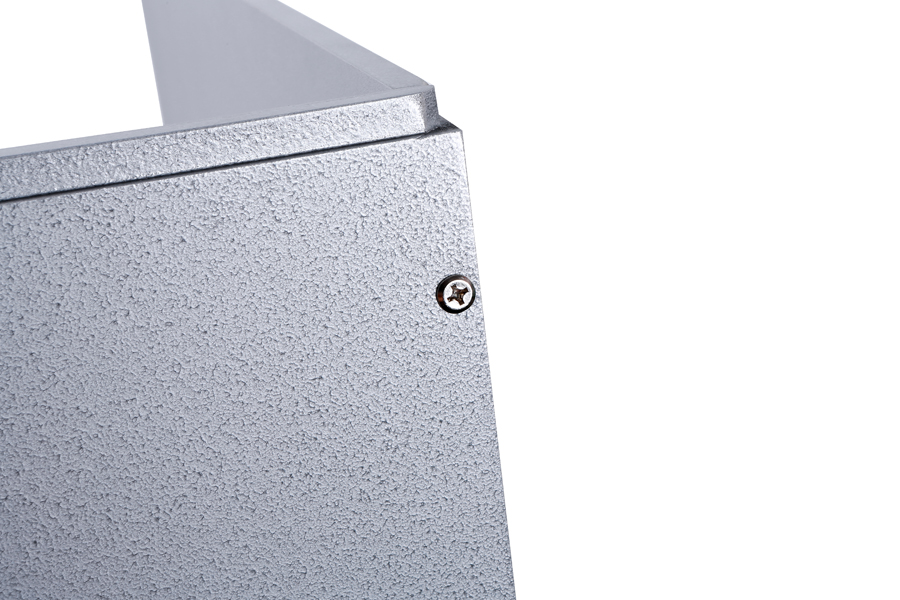

Color light box installation 4

Figure 4

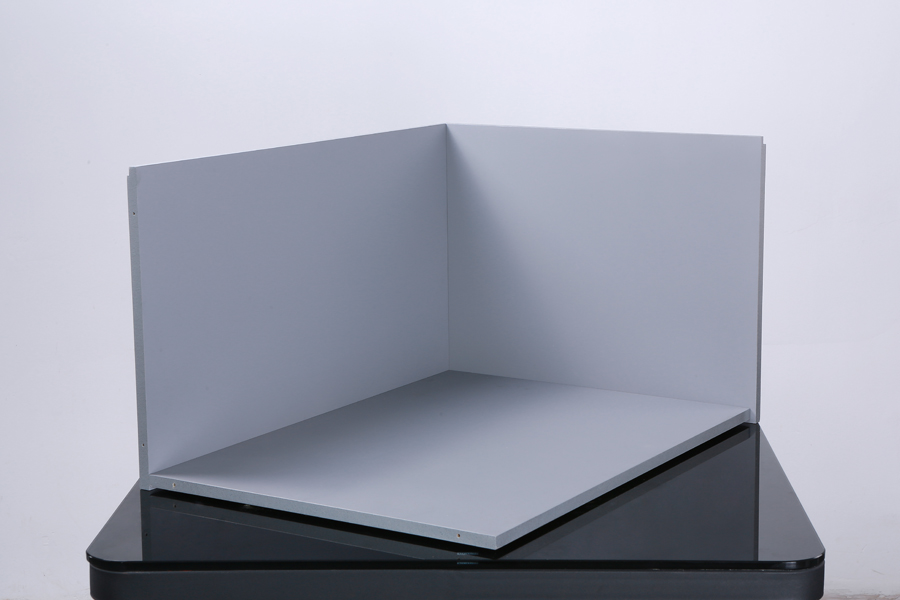

Then two boards are done shown as Figure 5.

Color light box installation 5

Figure 5

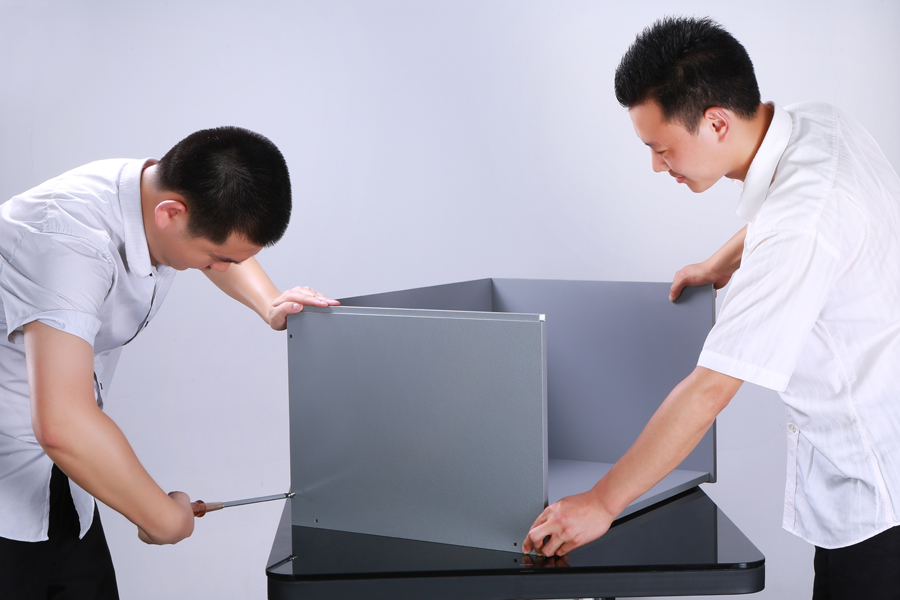

Third, install the last board shown as Figure 6.

Color light box installation 6

Figure 6

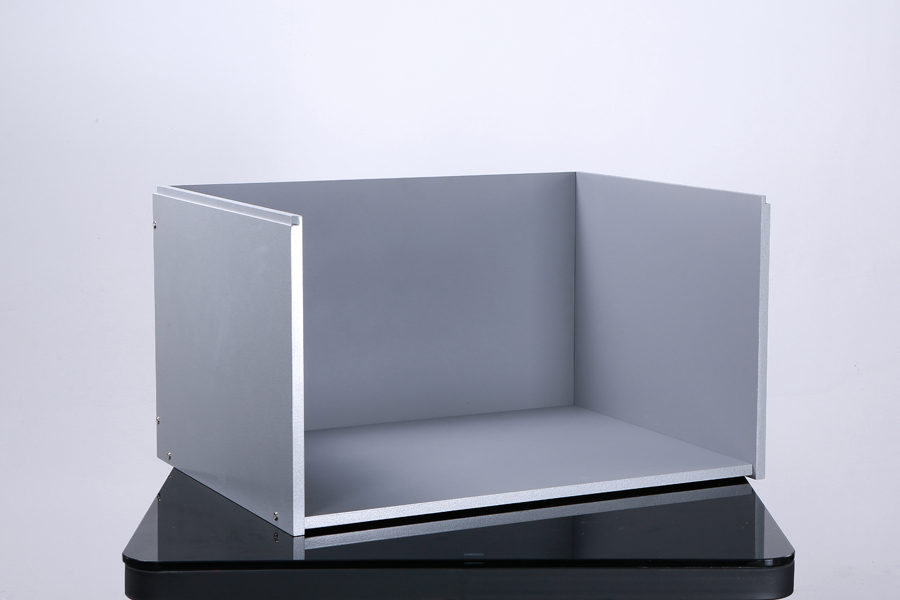

So the bottom board of color light box is completely installed shown as Figure 7.

Color light box installation 7

Figure 7

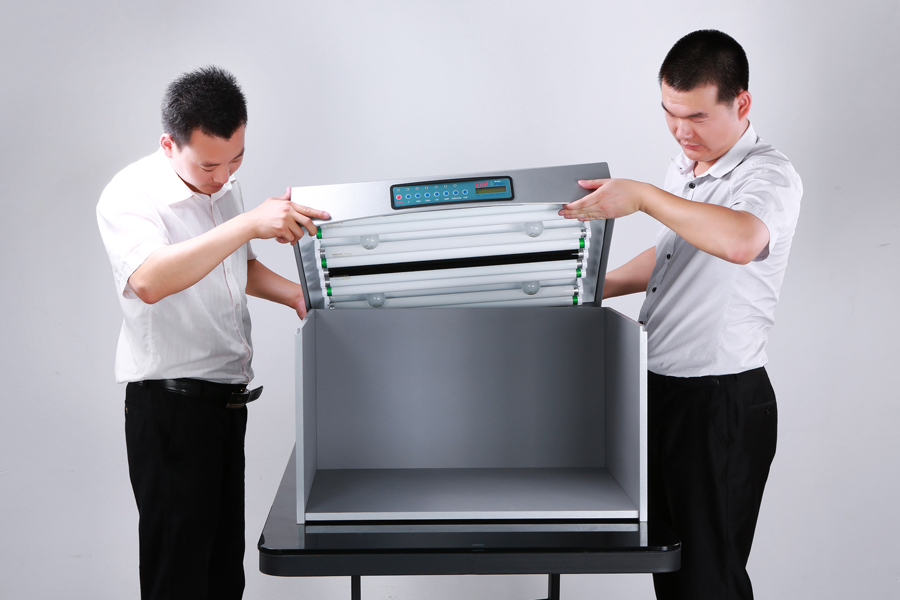

Finally, let's install the main board shown as Figure 8. Before installing it, please check if every tubes are good connection, or it might fall down easily. Please note that tubes will be loose for the impact of transit.

Color light box installation 8

Figure 8

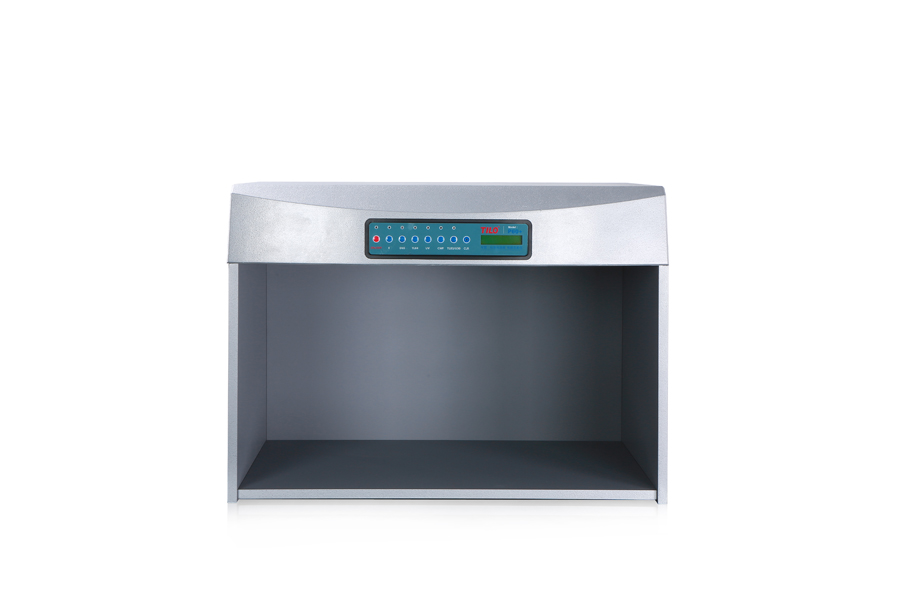

The installation of P60+ / T60+ color light box is complete shown as Figure 9.

Color light box installation 9
